Certificate Reader

Ahhh certificates. Sometimes is hard to find information about them or where to use them.

I will show you a tool I use often to extract the Base64, JSON Web Key and the private key from a certificate.

Why you might ask? well, if you have used an API lately, you will probably find it secured by a JWT (JSON Web Token).

You can find more information about what a JWT is here.

But long story short, we pass a token to the API that we obtained from an Identity Provider (Duende, Ping Federated, OKTA, etc.) in order to authenticate our request.

First you will need a certificate to test the tool, you can use this powershell script to generate the cer and the pfx

$certname = "myselfsignedcert"    ## Replace {certificateName}

$cert = New-SelfSignedCertificate -Subject "CN=$certname" -CertStoreLocation "Cert:\CurrentUser\My" -KeyExportPolicy Exportable -KeySpec Signature -KeyLength 2048 -KeyAlgorithm RSA -HashAlgorithm SHA256

Export-Certificate -Cert $cert -FilePath "e:\certs\$certname.cer"   ## Specify your preferred location

$mypwd = ConvertTo-SecureString -String "myPassword" -Force -AsPlainText  ## Replace {myPassword}

Export-PfxCertificate -Cert $cert -FilePath "e:\certs\$certname.pfx" -Password $mypwd   ## Specify your preferred location

You can obtain a JWT by sending a request to the Identity provider with simple client credentials and secret, but that is considered not enough anymore.

Now what you do is to sign the request with a certificate and obtain the JWT.

In another post I will show you how to setup Duende and Postman in order to secure your API, but for now I will show you how to install the tool using Docker.

If you don't use Docker in your development, please use it.  It speeds up dev and you can do so many cool stuff with it.

Assuming you have docker desktop installed on your machine or on a server somewhere.

Pull the image.

docker pull jtenorio/jtcertificatereaderweb:latest

Run the container.

docker run -d -e ASPNETCORE_URLS=http://*:4040 -p:4040:4040 -e IsOverrideBasePath=true -e OverridenBasePath=/certreader jtenorio/jtcertificatereaderweb

Docker Hub Link

Docker

The p flag will map a specific port for the container, and it must match the ASPNETCORE_URLS port.

The IsOverrideBasePath is used when a reverse proxy is used (NGINX), its intention is when the site is on a different location, the ~ in MVC will resolve correctly.

The OverridenBasePath is used to map the base path when in a reverse proxy.

If you don't want to install it, you can use it from

https://darthseldon.net/certreader/

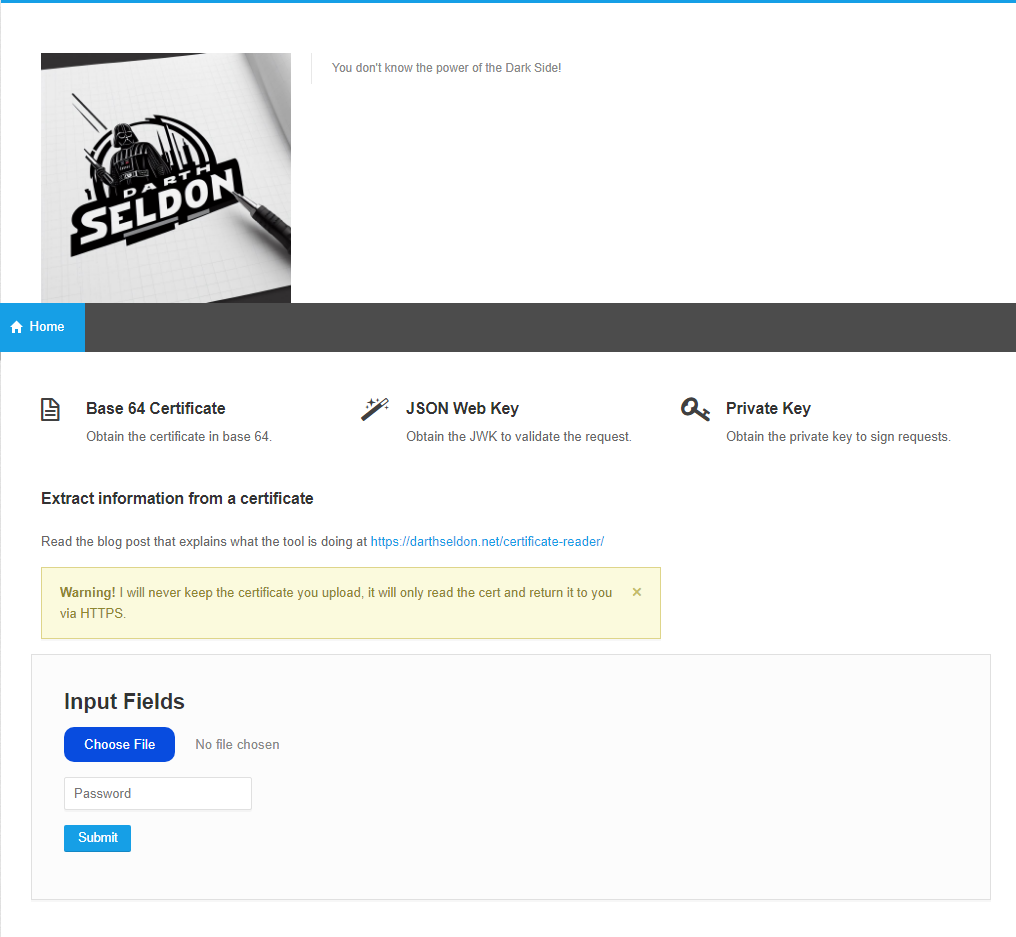

The tool takes only 2 parameters.

A PFX (Public and Private) or a CER (Public) file that contains the certificate.

The password, if it is a PFX file.

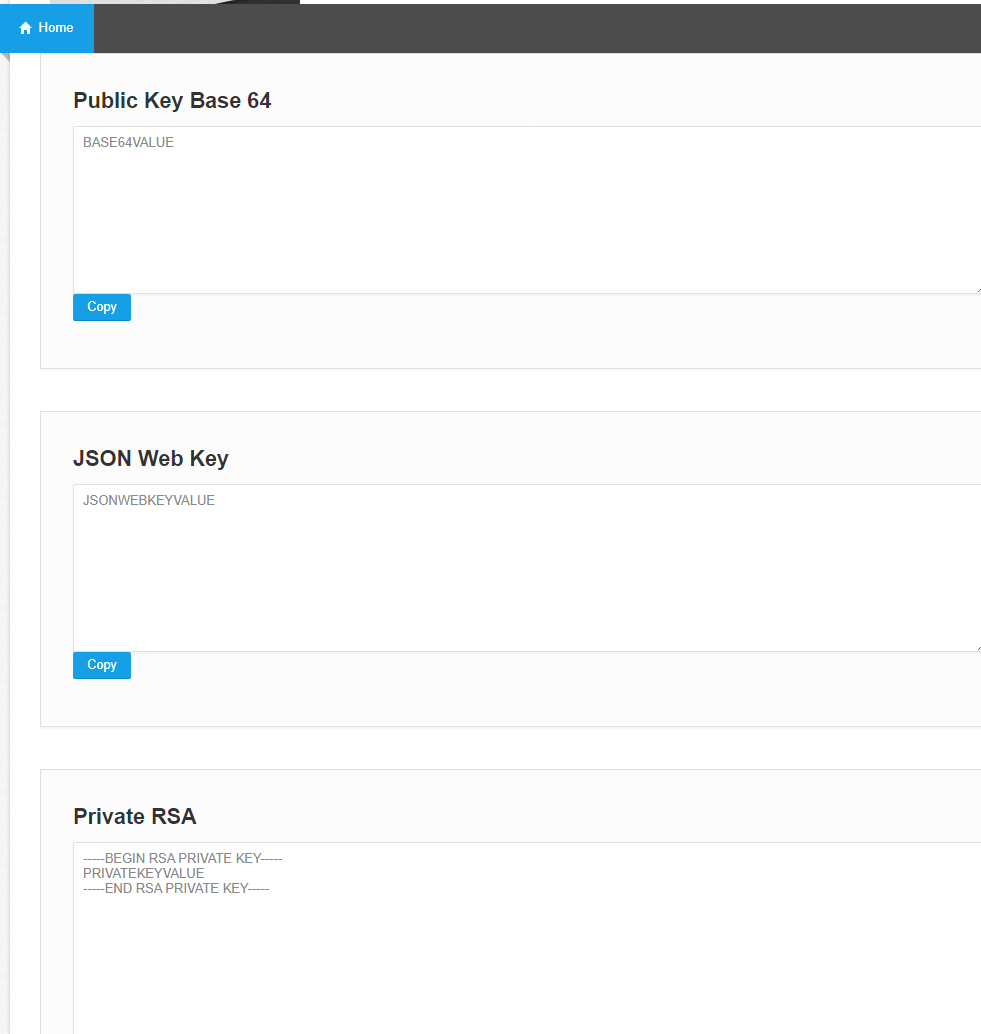

When you submit, you will see a similar result to this

You can copy the values and use them.

On the next installment I will go thru the code and explain what is happening behind the scenes.

Happy hacking!!!!
